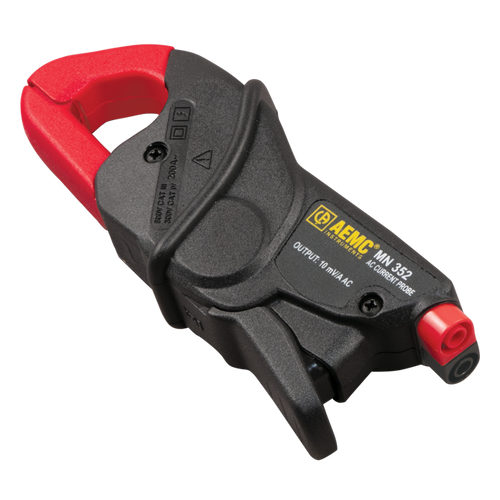

AEMC AC Current Probe Model MN352

AEMC MN352 Description:

The AEMC MN352 (#2116.26) AC Current Probe, 10mV/A-150A Max, Jack is designed to meet the most stringent demands in industry and electrical contracting. The MN352 meets EN 61010, 600V, Cat. III safety standards and is CE Marked and UL approved for Canada and United States. The MN352 has a 0.78" (20mm) jaw opening and accommodate conductors up to 250MCM. The unique hooked jaw design facilitates clamping and hooking onto conductors. Polycarbonate materials and ultrasonic welding are used throughout to ensure ruggedness and overall lasting reliability.

The Model MN352 is a high performance model and uses a custom nickel core to improve accuracy and phase shift on the low end of the measurement range. The Model MN352 is an excellent probe to be used in power and low level current measurement applications.

Key Features:

• Small, compact size
• Measurement range of 0.1 to 150A
• Two standard safety banana jacks (4mm)
• Large jaw opening accommodates conductors up to 250MCM
• Designed for DMMs, loggers, recorders and oscilloscopes
• 40Hz to 10kHz response
• 10mV/Aac output signals
• Designed to EN 61010, 600V Cat. III safety standard
• UL approved for Canada and United States
• Double Insulation
• CE Mark

Applications

• Measuring in breaker panels
• Industrial loads
• HVAC
• Residential and commercial sites
• Data logging/recording
