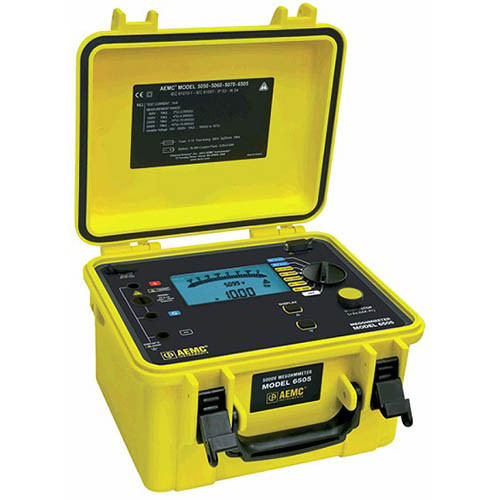

AEMC 5070 Megohmmeter Graphical 5KV Insulation Tester
$4,575.00
- Brand
- Aemc
- SKU:
- 2130.3
- UPC:
- 6.85E+11
AEMC Instruments 5070 Description:
The only megohmmeter to offer both a graphical plot of the test right on the instruments, as well as a digital presentation of the test results. It has a large graphic display with five line alphanumeric display and graph and offers the ability to program up to three step voltage profiles, each containing up to five steps. It slso has an RS-232 port which provides the ability to configure the unit and run the test from a PC. Test results can be generated directly to a printer using the DataView® graphing and analysis software.
Features
- True Megohmmeter® with selectable test voltage from 40 to 5100V, and fixed test voltages of 500V, 1000V, 2500V and 5000V
- Insulation measurements from 30k? to 10T?
- Automatic calculation of DAR, PI and DD ratios
- Direct measurement and display of Capacitance and Leakage Current
- Display resistance, test voltage and run time
- Programmable test run times and PI ratio times
- Smooth and Alarm functions
- Automatic test inhibition (if live sample >25V)
- Automatic discharge and display of discharge voltage
- Graphic and digital display of test voltage, resistance and more
- Bright blue electroluminescent backlight
- Programmable temperature compensation
- Programmable test voltage lock-out
- Programmable alarm setting
- Auto power-down when not in use
- AC or DC powered with rechargeable NiMH battery pack - run while charging
- Rugged, weatherproof field case
- Designed and built to IEC safety standards
- EN 61010-1, 1000V CAT III
Applications
Test insulation on:
- Cables
- Transformers
- Motors
- Generators
- Insulators and wiring installations
AEMC Instruments 5070 Specifications:
| Insulation Tests | |
| Test Voltages | 500 V: 30k? to 2000G? (2T?) 1000 V: 100k? to 4000G? (4T?) 2500 V: 100k? to 10,000G? (10T?) 5000 V: 300k? to 10,000G? (10T?) |
| Accuracy | 1k? to 40G?: ±5% of Reading ±3cts 40G? to 10T?: ±15% of Reading ±10cts |
| Voltage Test/Safety Check | AC/DC: 0 to 1000V |
| Voltage Warning Indicator | Yes >25 V |
| Communication | |
| Storage of Readings over Time R(t) | 128kB Memory |
| Storage of Test Results | >1500 Test Results |
| General Specifications | |
| Power Supply | 9.6V NiMH Battery Pack |
| Dimensions | Case: 10.63 x 9.84 x 7.09" (270 x 250 x 180 mm) |
| Weight | Approx. 9.5 lbs (4.3 kg) |
What's included with the AEMC Instruments 5070
- Graphical Megohmmeter
- Set of 3 10' (5kV) Leads (Red, Black and Blue) with Integral Hippo Clips (5000 V)
- Guard Terminal Jumper Lead
- RS-232 DB9 F/F 6' Null Modem Cable
- RS-232 to USB Adapter
- US 115V Power Cord
- Rechargeable 9.6V NiMH Battery Pack
- USB Stick with DataView® Software
- Extra Large Tool Bag
- User Manual
