AEMC 2129.21 AC Current Probe Model MN09 (150A, 100mV DC/A AC, Lead)
Write a Review
Write a Review
Aemc
AEMC 2129.21 AC Current Probe Model MN09 (150A, 100mV DC/A AC, Lead)
$149.00
- Brand
- Aemc
- SKU:
- 2129.21
- UPC:
- 6.85E+11
- Availability:
- In Stock

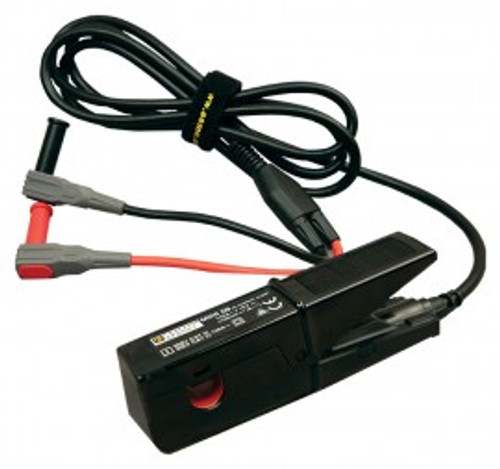

AEMC Instruments MN09 Description:
An ergonomic mini-clamp for facilitating work loads to measure low and medium currents from 0.01 to 240 A AC.
Features
- Measures low and medium currents from 0.01 A to 240 A AC
- Jaws makes ÃÂÃÂhookingÃÂÃÂ onto cables easy, even in areas of restrictive access
- Jaws can grip conductors up to 20 mm in diameter
- Compatible with all multimeters and testers on the market
- Can measure currents by means of the DC or AC voltage calibres
Applications
- measurement on current transformer outputs, on oscilloscopes and leakage currents
AEMC Instruments MN09 Specifications:
| Current Range | 0.5 to 240 A AC | |
| Current Transformation | 1000/1 | |
| Output Signal | 1 mA AC / A AC (240 mA for 240 A) | |
| Accuracy and Phase Shift | ||
| Primary Current | 0.5 to 10 A, 10 A to 40 A, 40 to 100 A, 100 to 240 A | |
| % Accuracy of Output Signal | ? 3 % + 0.5 mA, ? 2.5 % + 0.5 mA, ? 2 % + 0.5 mA, ? 1 % + 0.5 mA | |
| Phase Shift | Not specified, ?5ÃÂð, ?3ÃÂð, ?2.5ÃÂð | |
| Electrical Specifications | ||
| Bandwidth | 40 Hz to 10 kHz | |
| Crest Factor | 3 for a current of 200 A RMS | |
| Maximum Currents | 200 A continuous for a frequency 3 kHz (limitation proportional to the inverse of one third of frequency beyond) | |
| Load Impedance | ?10 ? | |
| Operating Voltage | 600 VRMS | |
| Common Mode Voltage | 600 V category III and pollution degree 2 | |
| Influence of Adjacent Conductor | ? 15 mA / A at 50 Hz | |
| Influence of Conductor Position in Jaws | ? 0.5 % of output signal at 50/60 Hz | |
| Load Influence 0.2 to 10 ? | <0.5 % on measurement < 0.5ÃÂð on phase | |
| Influence of Frequency | <3 % of output signal 40 Hz to 1 kHz | |
| Influence of Crest Factor | <4 % of output signal for a crest factor of 3 and current 200 of A RMS | |
| Mechanical Specifications | ||
| Operating Temperature | 14 to 131ÃÂðF (-10 to 55 ÃÂðC) | |
| Storage Temperature | -40 to 158ÃÂðF (-40 to 70 ÃÂðC) | |
| Influence of temperature | ? 0.15 % of output signal per 10 ÃÂðK | |
| Relative Humidity for Operation | 0 to 85 % RH decreasing linearly above 95ÃÂðF (35 ÃÂðC) | |
| Influence of Relative Humidity | <0.2 % of output signal from 10 to 85 % RH | |
| Operating Altitude | 0 to 2000 m | |
| Maximum Jaw Opening | 20 mm | |
| Clamping Capacity | Cable: ÃÂÃÂ max 20 mm Busbar: 1 busbar of 20 x 5 mm | |
| Casing Protection Rating | IP40 (IEC 529) | |
| Drop Test | 1 m (IEC 68-2-32) | |
| Shock Resistance | 100 g (IEC 68-2-27) | |
| Vibration Resistance | 10 / 55/10 Hz, 0.15 mm (IEC 68-2-6) | |
| Self-Extinguishing Capability | Casing: UL94 V2 | Jaws: UL94 V0 |
| Output | 1.5 m two-wire lead with double or reinforced insulation terminated by 2 elbowed male safety plugs (4 mm) | |
| Dimensions | 5.3 x 2.0 x 1.18" (135 x 51 x 30 mm) | |
| Weight | 0.39 lbs (180 g) | |
| Safety Specifications | ||
| Electrical Safety | Instrument with double insulation or reinforced insulation between the primary, the secondary and the grippable part located under the guard as per IEC 1010-1 & IEC 1010-2-032 600 V category III, pollution degree 2 300 V category IV, pollution degree 2 | |
| Electromagnetic Compatibility | EN 50081-1: class B EN 50082-2 Electrostatic discharge: IEC 1000-4-2 Radiated field: IEC 1000-4-3 Fast transients: IEC 1000-4-4 Magnetic field at 50/60 Hz: IEC 1000-4-8 | |
