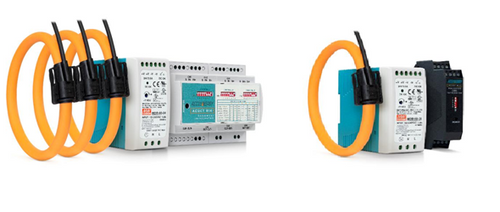

Accuenergy RIK16-mA-3 Three channel 4-20mA/0-20mA Output Integrator with 16" Rogowski Coil, Din-Rail Power Supply, 100-240Vac
Write a Review
Write a Review
Accuenergy
Accuenergy RIK16-mA-3 Three channel 4-20mA/0-20mA Output Integrator with 16" Rogowski Coil, Din-Rail Power Supply, 100-240Vac
$449.90
- Brand
- Accuenergy
- SKU:
- RIK16-mA-3
Accuenergy RIK16-mA-3 Three channel 4-20mA/0-20mA Output Integrator with 16" Rogowski Coil, Din-Rail Power Supply, 100-240Vac
Description:
Three-channel 16" 4-20/0-20mA Integrator Kit, 2M Leads
Track Specifications via Part Number:
![RIK-mA - Three Channel](/product_images/documents/Accuenergy/a17.png")
Additional Informations:
Accuenergy RIK16-mA-3 Offers
Rogowski Coils are high-specification flexible current transformers that are ideal for use when space is limited. The flexible form factor of a Rogowski Coil means they easily fit into tight panels and come in a range of sizes to suit most installations.
Like standard split core transformers, Rogowski coils can be easily integrated into existing panels without having to cut any lines.
Features
- Flexible rope-like current sensor, designed to easily fit into panels or busbars where space may be limited
- 0-333mV rated output that works with any power meter or equipment with 333mV nominal current transformer input
- Current sensing range from 2.5A to 50,000A to fit all systems
- Field-configurable CT ratios: 500A, 1kA, 2.5kA, 5kA, 10kA, 25kA, 50kA
- Individual CT ratios can be configured for each channel
- Works in any single phase application with different current ratings
- Works in both 50Hz and 60Hz systems
Accuenergy RIK16-mA-3 Specifications
| Window Diameter Size in (mm) | 4.17 (106) |
| Length in (mm) | 15.75 (400) |
| Current Measurement Range | 2.5A - 60000A |
| Output Current | 4-20mAdc or 0-20mAdc (Field Configurable) |
| Sensing Range | 500A, 1000A, 2500A, 5000A, 10000A, 25000A and 50000A (Field Configurable) |
| Measurement Channels | 3 Channel |
| Frequency | 45Hz to 65Hz |
| Accuracy | ±1% Full Scale Error |
| Channel Cross Talk | < -60dB |
| Maximum Operating Temperature | 55°C (131°F) |
What's included with the Accuenergy RIK16-mA-3
- Accuenergy RIK16-mA-3
- Three Channel Integrator
- Three 16" AcuCT Flex Current Sensors
- 100-240Vac Din-Rail Mount Power Supply
- DIN-Rail Mount Power Supply
- Manual
